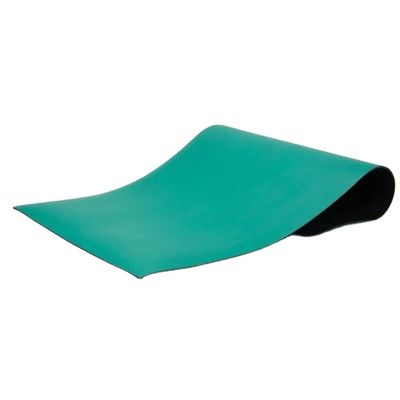

ESD Rubber Mat 2mm Thickness 1x10M Conductive Nitrile Sheet
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | Herzesd |
| Modelnummer: | HZ-30617 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | $49-65 |
|
Gedetailleerde informatie |
|||
| Dikte: | 2 mm/3 mm | Materiaal: | nitrilrubber |
|---|---|---|---|
| Oppervlakteweerstand: | 10e6-10e9 ohm | Onder laagweerstand: | 10e3-10e6 ohm |
| Maat: | 1*10m | Volumeweerstand: | 10e7-10e10 ohm*cm |
| Oppervlaktelaag dikte: | 0,5 mm | Onderste laagdikte: | 1,5 mm |
| Hittebestendigheid: | 300 ℃ | Oppervlaktetype: | mat/glanzend |
| Kleuropties: | groen, grijs, blauw | Structuurtype: | Dubbele laag composiet |
| Schuurweerstand: | Superieur | Chemische weerstand: | Superieur |
| Vochtweerstand: | Onaangetast | ||
| Markeren: | ESD rubber mat 2mm thickness,conductive nitrile rubber sheet,ESD mat 1x10M with warranty |
||
Productomschrijving
ESD Matting Conductive Rubber Sheet ESD Antistatic Table Mat Floor for Cleanroom 1*10M; 2mm Thickness/roll
| Specification | Details |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
Available Options
- Regular Premium Rubber Mat
- Heat Resistant 300℃ Rubber Mat
- Rohs 2.0 Original Rubber Mat
ESD Rubber Mat Overview
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid ESD table mats. Our ESD products and static control equipment serve the high-tech industry with reliable protection solutions.
Basic Features of ESD Table Mat
Our ESD mats are primarily constructed from anti-static (conductive) materials and static-dissipative synthetic rubber. The surface features a 0.5mm thick static dissipative layer, while the bottom consists of a 1.5mm conductive layer. The standard 2mm double-layer composite structure is available in green, gray, blue, black, and white color options.
We offer two structural types: whole body and compound, with both bright and matte surface finishes available.
Advantages of HerzESD Rubber Mat
Our anti-static table mats combine superior performance with practical benefits. The 0.5mm static-dissipative surface layer works in conjunction with the 1.5mm black conductive base to safely drain charges from personnel, ESD boxes, and components.
Key benefits include:
- Lies flat without curling
- Unaffected by humidity variations
- Superior resistance to abrasion and chemicals
- Heat resistant for demanding environments
- Easy to clean and maintain
- Available in multiple colors including green, gray, blue, and black
Why ESD Protection Matters
Electrostatic Discharge (ESD) occurs commonly in daily life, but in electronics manufacturing, it can cause component damage and latent PCB failures. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of effective ESD protection and quality assurance.
Complete ESD Solutions
HerzESD provides a full range of ESD protection products including:
- ESD Packaging: Shielding bags, EVA/PU/IXPE foam, PP boxes, tapes, blister packs, pallets, bin boxes, trays
- ESD Mats: Table mats, floor mats, anti-fatigue mats, PVC tiles
- SMT Circulation: Magazine racks, PCB racks, reel racks, trolleys, storage shelves
- Grounding Solutions: Wrist straps, grounders, plugs
- ESD Apparel: Smocks, jackets, shoes, boots, caps, gloves
- ESD Tools: Brushes, tweezers, office supplies, test equipment
