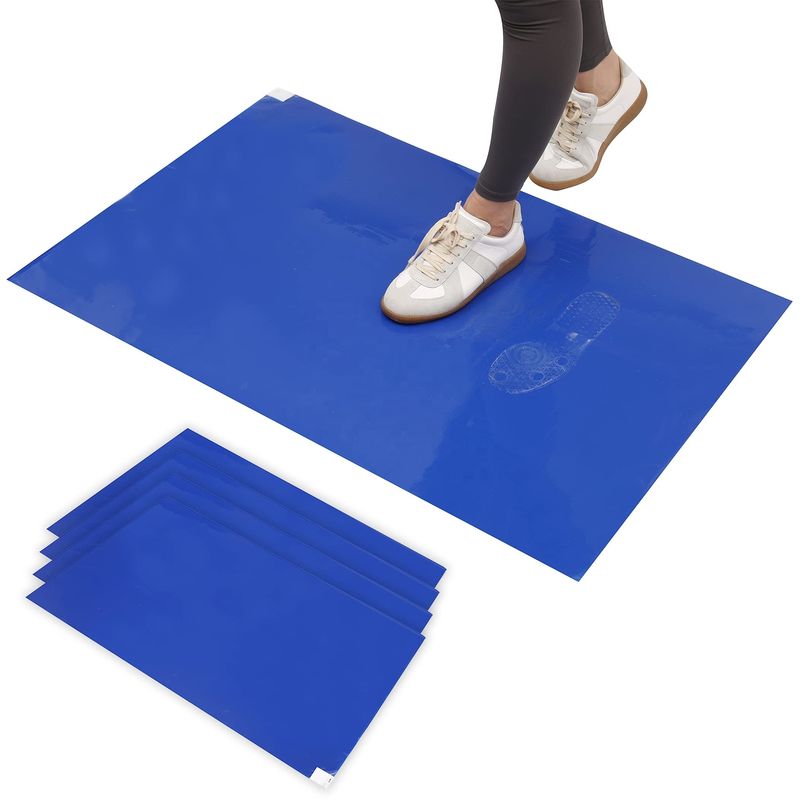

ESD Sticky Mat for Cleanroom Dust Removal 18x36 to 26x45 Inches
Productdetails:
| Plaats van herkomst: | Sjanghai, China |
| Merknaam: | Herzesd |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 |
|---|---|
| Prijs: | US$1,50-6 |
|
Gedetailleerde informatie |
|||
| Filmdikte: | 35 μm-50 μm | Coatslijm dikte: | 5μm-7μm |
|---|---|---|---|
| Treksterkte: | > 1,2 kg/cm | Filmmateriaal: | PE |
| Maat: | 18 ''*36 '', 18 ''*45 '', 24 ''*36 '', 26 '' | Verwijder het vuil -effect: | ≥99,9% |
| Kleur: | Blauw, wit | Model: | HZ-30618 |
| Lijmlagen: | 30 lagen | Gebruiksomgeving: | Cleanroom, gecontroleerde omgeving |
| Deeltjesverwijdering: | Kleine deeltjes | Vervangingstype: | Peelbare vellen |
| Toepassingsindustrieën: | Elektronica, Pharmaceuticals, Biotechnology | Statische controle: | ESD veilig |
| Bouwselement: | Dikke en dunne film | ||
| Markeren: | ESD sticky mat for cleanroom dust removal,ESD rubber mat with anti-static properties,large ESD mat 18x36 to 26x45 inches |
||
Productomschrijving
| Attribute | Value |
|---|---|
| Color | Blue, White |
| Film thickness | 35μm-50μm |
| Coat mucus thickness | 5μm-7μm |
| Tensile strength | >1.2kg/cm |
| Film material | PE |
| Size | 18"×36", 18"×45", 24"×36", 26"×45" |
| Remove dirt effect | ≥99.9% |
| Feature | Eco-Friendly |
| Usage | Cleanroom Protection |
| Model | HZ-30618 | Film thickness | 35μm-50μm |
| Color | Blue,White | Coat mucus thickness | 5μm-7μm |
| Size | 18"×36", 18"×45", 24"×36", 26"×45" | Tensile strength | >1.2kg/cm |
| Film material | PE | Remove dirt effect | ≥99.9% |
Electronic components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
