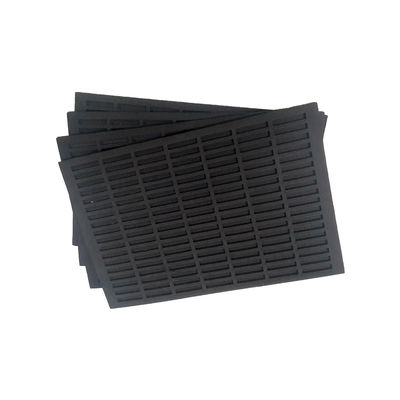

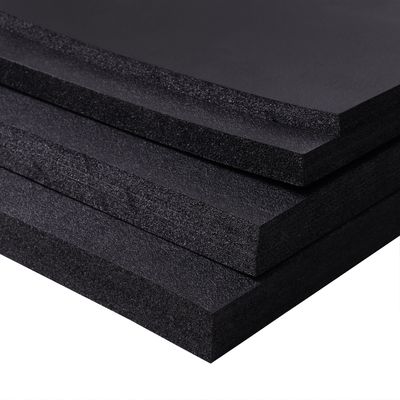

Customized ESD Foam Sheet with Rapid Electrostatic Release High Temperature Resistance and Chemical Resistance for Electronics Packing
Productdetails:
| Plaats van herkomst: | Jiangsu, China |
| Merknaam: | NONE |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 500 |
|---|---|
| Prijs: | $1.80-2 |
|
Gedetailleerde informatie |
|||
| Materiaal: | EVA/PU/IXPE | Kleur: | Zwart |
|---|---|---|---|
| Dikte: | 80-100 kg/m3 | Volumeweerstand: | 10e3-10e6 Ω.cm, 10e6-10e9 Ω.cm |
| Oppervlakteweerstand: | 103-109 Ω | Maximale temperatuur: | 120 ℃ |
| Chemische weerstand: | Bestand tegen organische oplosmiddelen, zuren, basen | Warmtisolatie: | Ja |
| Geluidsisolatie: | Ja | Waterabsorptie: | Ja |
| Vochtweerstand: | Ja | Verwerkingsprestaties: | Goed |
| Vormgemak: | Eenvoudig | Bufferprestaties: | Goed |
| Elektrische geleidbaarheid: | Uitstekend | ||
| Markeren: | Rapid Electrostatic Release ESD Foam Sheet,High Temperature Resistance Anti-static Foam,Chemical Resistance Conductive Foam |
||
Productomschrijving
| Item | Technical Data | |
|---|---|---|
| Conductive | Antistatic | |
| Model | HZ-1204A | HZ-1204B |
| Color | Black | Black |
| Density | 80-100Kg/m3 | |
| Volume Resistivity | 10e3--10e6 ohm.cm | 10e6--10e9ohm.cm |
- Promotes rapid release of electrostatic without requiring environmental humidity
- Excellent buffer performance for shock absorption
- Superior electrical conductivity with surface resistance: 10³-10⁹ Ω
- High temperature resistance: withstands up to 120℃
- Chemical resistance: resistant to organic solvents, acids, and bases
- Non-corrosive: safe for components and packaging materials
- Provides heat insulation, sound insulation, water absorption, and moisture protection
- Excellent processing performance with easy molding capabilities
Electronic components sensitive to electrostatic discharges (ESD) can be destroyed when exposed to excessive current or impact energy. These components, primarily semiconductors and thin-film construction elements, are most often damaged through human handling. A person can accumulate several thousand volts simply by walking, and discharges above 2000-3000V - while potentially imperceptible to humans - can exceed the tolerance levels of many ESD-sensitive components.
HerzESD is committed to providing accurate information and proper ESD solutions, even when it means correcting established but flawed industry practices. We maintain strong partnerships with reliable manufacturers to continuously improve our static control solutions and offer comprehensive ESD protection including workstations, chairs, clothing, footwear, flooring, packaging, and testing equipment.
